AUTOMATIC QUALITY INSPECTION SYSTEM – TYPES 2| 8 EXAMPLES

Automated and cobotised cell to control the assembly of aeronautical accessories.

Some characteristics of this autonomous technology :


- Production mode
: automatic control – loading up to 6 parts – 400 part numbers,
- Learning mode
: construction of a range (creation / validation of trajectories + image acquisition + installation of control points),
- Real-time monitoring of the control cycle
,
- Each image processing has tools allowing the operator to define, adjust and verify a control
(point, circle, polygon, vector),
- Creation/Validation of a trajectory with a cobot or robot
,
- Image acquisition module
,
- Image processing module:
(selection of the type of control in a drop-down menu, tool to set up an algorithm, test on the image: display of the result of the algorithm, help to guide the operator on the actions to be carried out),

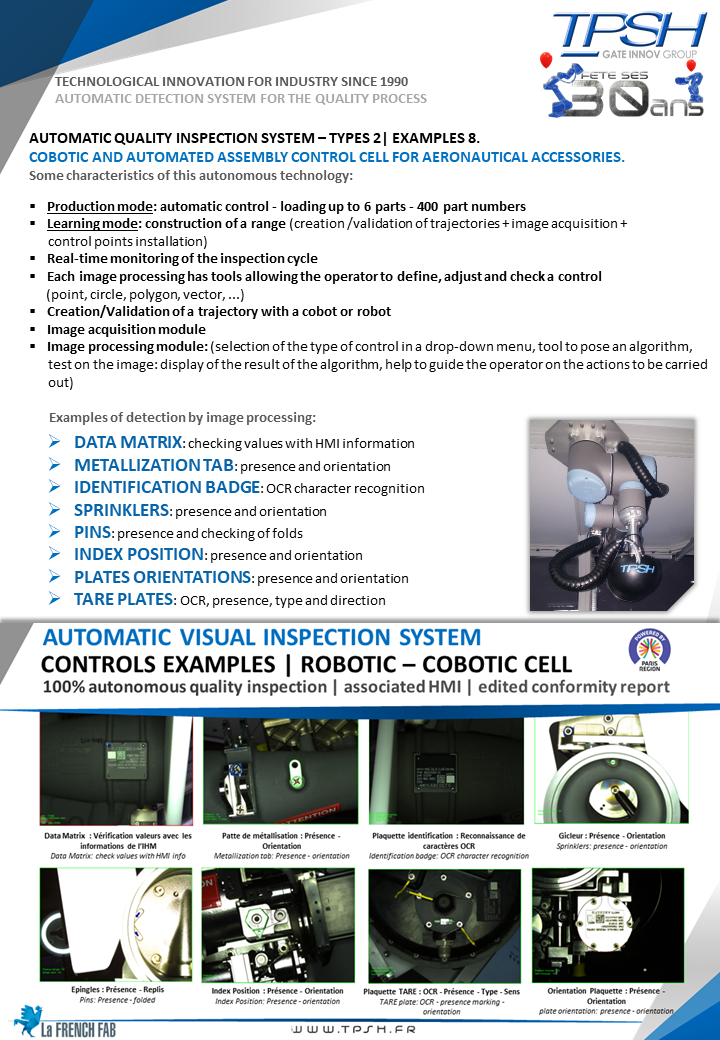

release pressoct2021_Cobotized and automated control cell

Examples of detection by image processing:

– DATA MATRIX: checking values with HMI information
– METALLIZATION TAB:
presence and orientation
– IDENTIFICATION BADGE: (OCR) character recognition
– SPRINKLERS
: presence and orientation
– PINS
: presence and checking of folds
– INDEX POSITION
: presence and orientation
– PLATES ORIENTATIONS
: presence and orientation
– TARE PLATES: OCR, presence, type and direction

For more information, ask us for technical information by email : info@tpsh.fr or by phone at 01 69 11 91 91
