LEARN MORE ABOUT OUR COMPLEMENTARY FINANCING SERVICE TO ACCESS OUR LEASING PRODUCT RANGE.

We can bring the power of our technological products into your processes through a leasing agreement.

The main features of this payment solution of our leasing supplementary service are:

Get financial flexibility with the option to buy the equipment or return it at the end of the rental period,

- Reduce perceived risks,
- Get an ideal financial tool for investment development,
- Bring in several flagship ways to increase your productivity,
- Use innovative products that meet the challenges of Factory 4.0 & 5.0
- Optimise resources and hidden time,
automatic_robotic_quality_control_head_TPSH

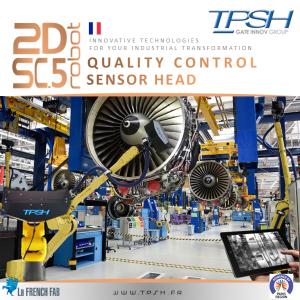

QUALITY INSPECTION CELL FOR COMPLEX ASSEMBLY CONTROL:

100% automatic, autonomous and robotic technology for complex assembly inspection for:

- 2D/3D vision inspection (Presence, shape, colour, direction…),
- Multi-element control (Fittings, connectors, nuts, screws, brake wire, pipes, joints, scratches, flaking, paint defects, etc.),
- Associated HMI that issues a compliance report,

Industrial challenges :

- Improve traceability of deliverables
- Reduce exported non-quality
- Work nights, weekends, in hidden time, 7 days a week, 24 hours a day
- Replacement of 4 quality inspectors
- More than 850 inspections in 20 minutes (nearly 200 acquisitions)
- More than 1500 engines checked
2D_3D mobile or fixed measurement system_TPSH

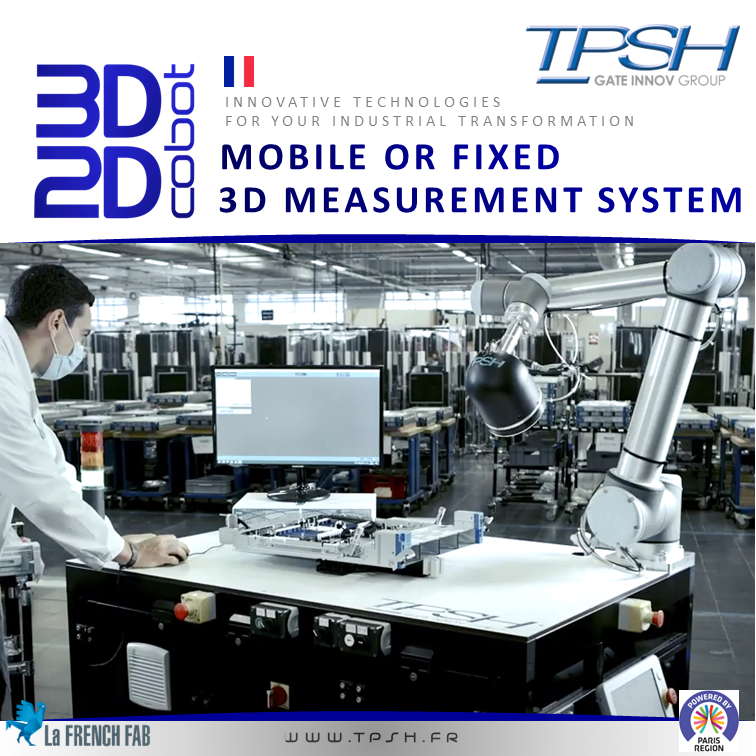

INDUSTRIAL MOBILE WORSTATION – COBOTIC INSPECTION FOR QUALITY CONTROL:

Our cobotic system is transportable, inspection workstation, flexible, reducing exported non-quality with:

- A cobot interfaced with an intelligent inspection and measurement head,
- An HMI to supervise all the control cycles and ensure the traceability of the results,
- 100% automatic and autonomous,

Industrial challenges:

- Automatic quality inspection
- Improve traceability of deliverables
- Reduce exported non-quality
- The operator doesn’t need special skills
- Optimises factory layout
- Autonomous inspection cycle

3DMcGUN_portable 3D measurement system with HMI_TPSH

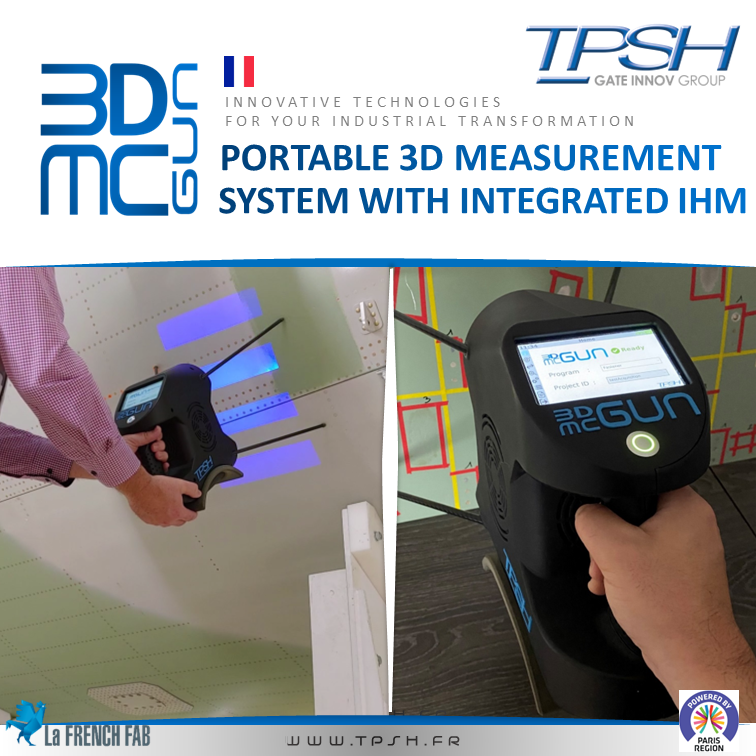

1st PORTABLE 3D MEASUREMENT TOOL FOR MANUAL QUALITY INSPECTION:

The 3DMC GUN© is the new portable real-time metrology autonomous control system designed to accurately identify the:

- Rivet assembly control, aspect defects (tip, impact, scratch, spall), assembly and dent and deformation analysis,

Industrial challenges:

- Automatic manual quality inspection
- Improve traceability of deliverables
- Reduce exported non-quality
- Improve predictive maintenance
- Digitize processes
- Inspection capacity = Over 1000 rivets inspected per hour by 1 operator




Quality inspection on AGV with cobot_3 heads measurement_TPSH

1st 2D | 3D MULTICHAMPS CONTROL SYSTEM ON AGV FOR AUTOMATIC QUALITY INSPECTION:

This 100% automatic and autonomous solution is designed to check a multitude of assembly elements on large parts:

- Control of clamps, electrical harness, signal plate, connectors, accessories, bar code, data matrix, etc…
- Random search for missing parts, washers on screws that have received a protective coating, etc …
- Robust reading of screw references, etc …

Industrial challenges:

- Automatic quality inspection
- Improves the traceability of deliverables
- Before : 4 operators needed
- After : 1 system that controls 2000 to 4000 points per part
- Works on weekends, at night, in hidden time and facilitates coactivity




Very high speed measurement system_confocal sensor_TPSH

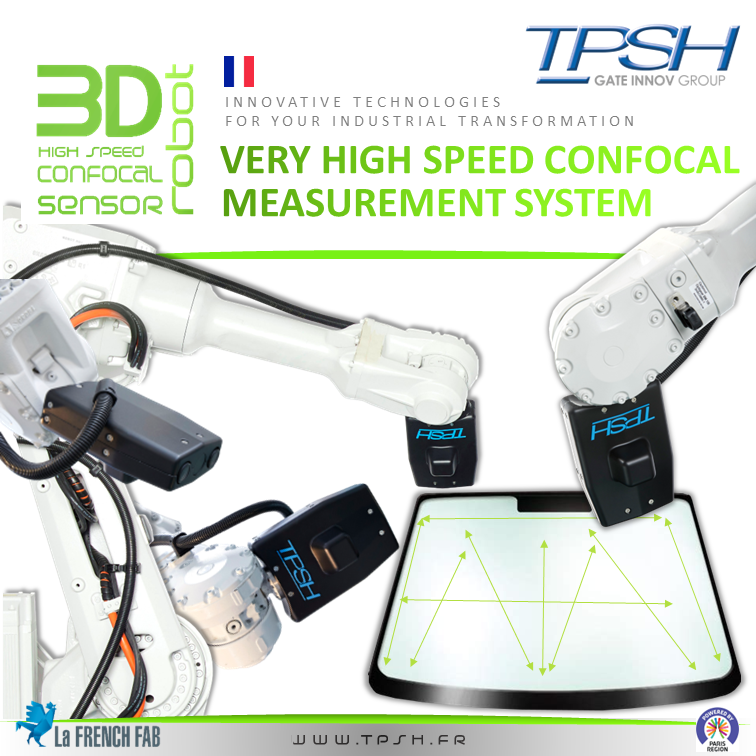

1st 3D MEASURING SYSTEM WITH CONFOCAL SENSOR:

A totally new high speed robotic turnkey system for 100% in-line production control (4 to 12m/s) in order to:

- To analyze the dimensional, geometric and shape conformity with a mixed opaque and transparent multi-material (“glass, metal”, “glass, plastic”),

Industrial challenges :

- Automatic quality inspection
- Reduce exported non-quality
- Adapt processes in real time
- Synchronization of robots
- Time to inspect 1 part = 10 seconds




Hybrid high speed measurement system_confocal_laser_TPSH

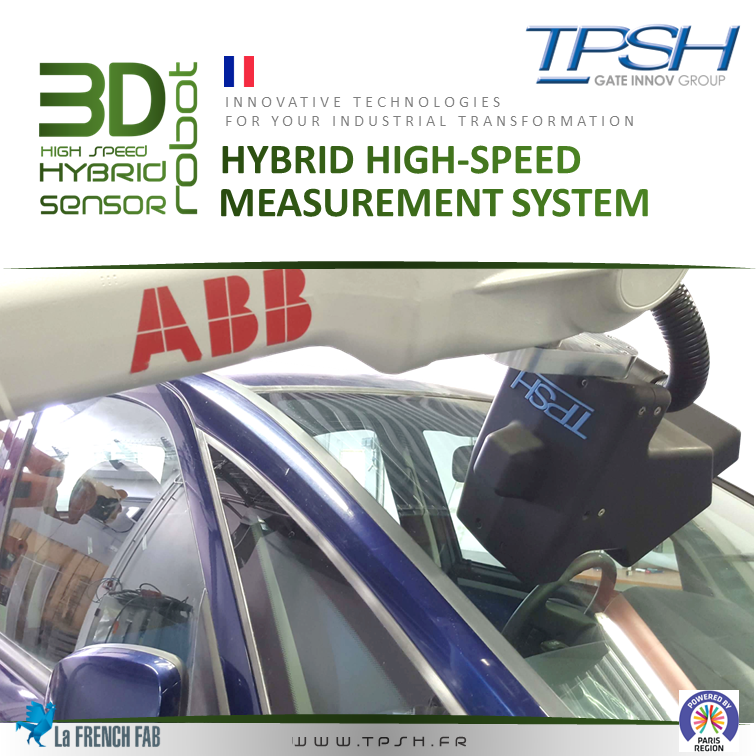

1st HYBRID 3D MEASURING SYSTEM WITH CONFOCAL SENSOR AND LASER LINE :

Our technology is a high speed robotic system that allows us to measure both sides of the same lens at the same time and to detect air gap defects in laminated lenses:

- Hybrid confocal laser head synchronized in real time to the robot movements,
- Development of a calibration principle applicable to industrial robots,

Industrial challenges:

- Control of 100% of the production
- Automatic quality inspection
- Adapt processes in real time
- Improve predictive maintenance
- Control of the car body in 57 seconds with 2 heads and 2 robots

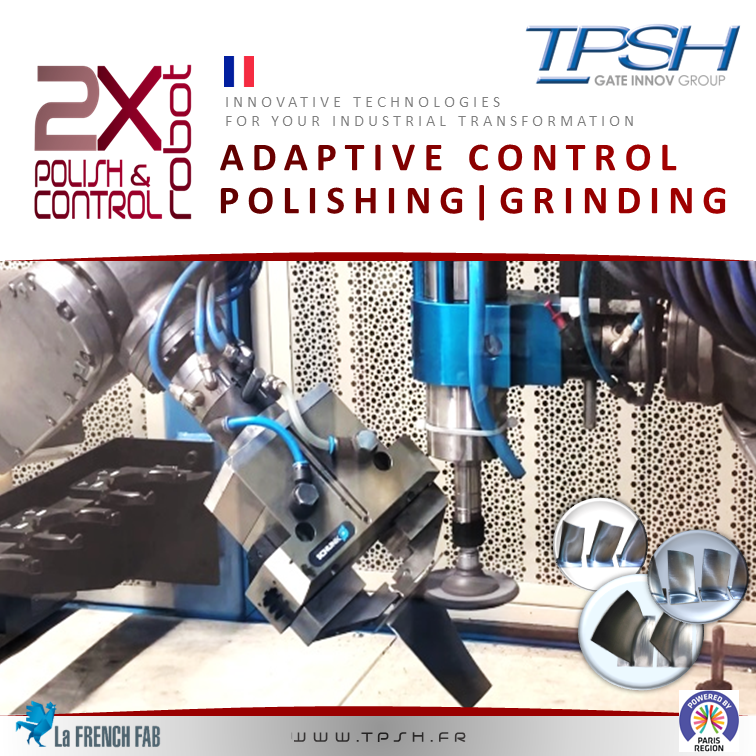

Polishing_grinding_deburring_control_TPSH cell

ROBOTIC CELL FOR BLADE & TURBINE FINISHING – 100% AUTOMATIC:

Our robotized polishing, grinding and deburring cell combines a 2D/3D measuring system with adaptive processes and PHL-AA trajectories dedicated to the following processes:

- Blades: BA/BF, vein, Extrados/intrados, vein radii, gendarme caps, etc…,
- Turbines: BA/BF, vein, Extrados/intrados, vein radii, flange, flange holes, etc…,
- 100% automatic and autonomous,

Industrial challenges:

- On-board automatic polishing/deburring/grinding cycle
- Automatic quality inspection
- Reduce exported non-quality
- Before : 1 operator = 35 min/1 blade
- After: 1 machine = 6 operators |7 days a week | 3/8 (7 min/1 blade)

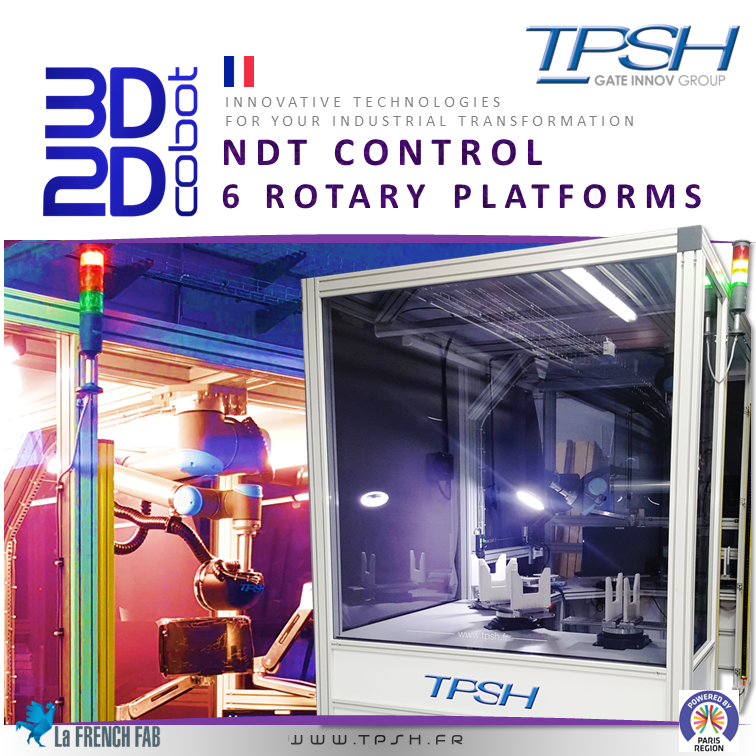

NDT control cell_automatic rotating tables_TPSH

AUTOMATIC OPTICAL CELL FOR QUALITY CONTROL OF FINISHED PRODUCTS:

Our cobotic NDT technology for the detection of assembly defects is the fusion between an smart optical inspection head and a cobot with:

- An inspection station with up to 6 rotary tables and their tooling,
- A tool for creating control ranges,
- And allows the statistical analysis of the results obtained,

Industrial challenges:

- Automatic quality inspection
- Improve the traceability of deliverables
- Reduce exported non-quality
- Adapt processes in real time
- Control of 6 parts simultaneously with 6 rotary tables

Infrared camera_visible_Melting bath monitoring_TPSH

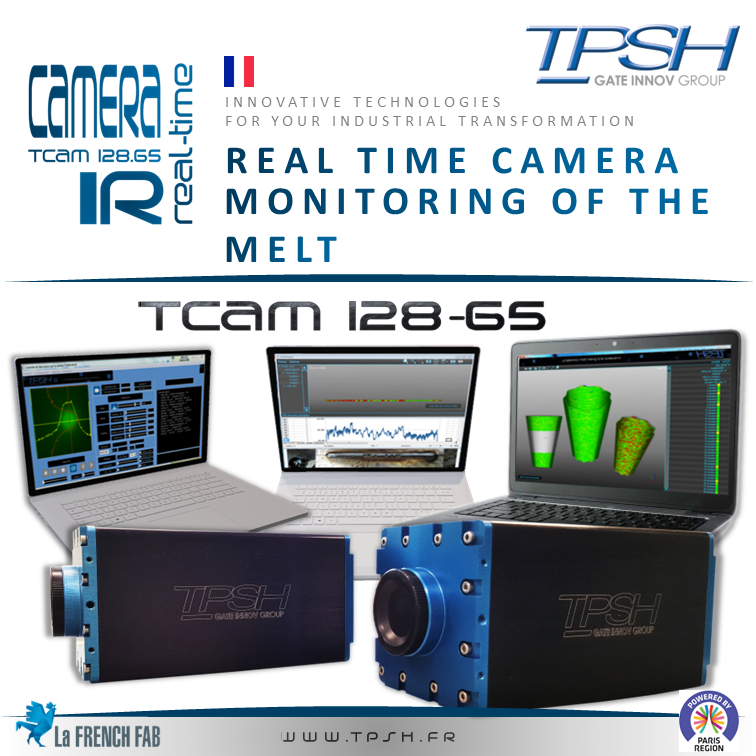

TCAM128-65© – SMART CAMERA FOR REAL TIME PROCESS CONTROL:

- Le soudage YAG – TIG – MIG – MAG – LASER – FSW,
- La fabrication additive LM et DMD,CND temps réel in process,

Industrial challenges :

- Automatic quality inspection by camera
- Improve traceability of deliverables
- Reduce exported non-quality
- Reduce the use of raw material
- Synchronization of the camera and its HMI to follow a melt in real time
- Autonomous control cycle




NDT_ultrasonic_measurement cell 3D_TPSH

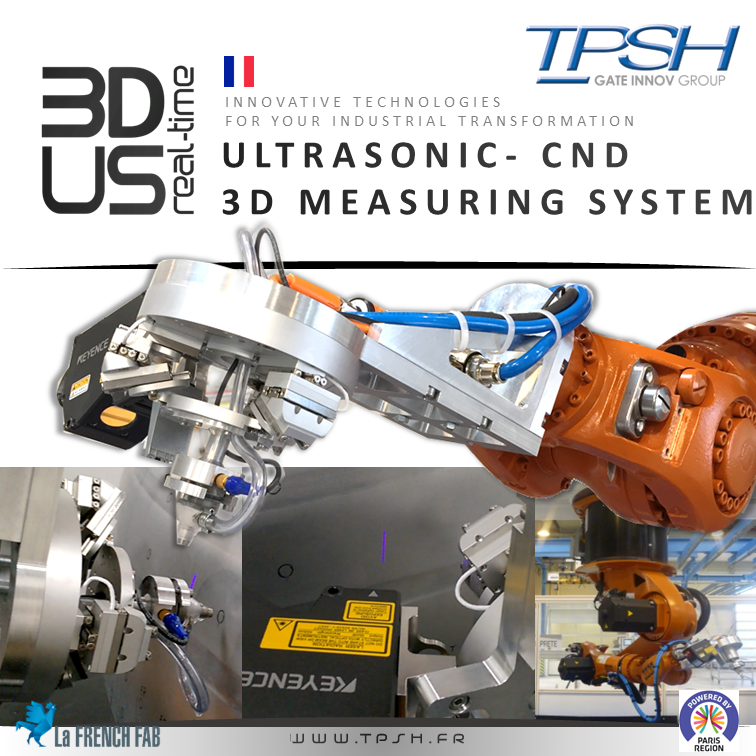

ADAPTIVE ULTRASONIC MEASURING CELL – 3D AND CND INSPECTION COMBINED IN REAL TIME :

Scanning of the surface: calculation of the corrections for the real time control:

- 1 measuring head associated with a laser 3D measurement line to a US sensor,
- PHL software to automatically create 3D control programs,
- Automatic and adaptive control of the normal to the US sensor,

Industrial challenges:

- Robotic automatic quality inspection
- Adapting processes in real time
- Digitize processes
- Synchronization of an ultrasonic and laser sensor
- Before: manual control, data entry errors
- After: 50% reduced inspection time




HMI_human_machine_interface_TPSH

HMI – HUMAN-MACHINE INTERFACE SYNCHRONIZED IN REAL TIME TO ROBOTS AND COBOTS:

We develop our supervision software (Windows, Linux) integrated to all our products for technologies:

- 100% automatic and customizable,
- With multiple innovative functions,
- 100% automatic and autonomous,

Industrial challenges:

- Generate automatic control reports
- Improve the traceability of deliverables
- Digitize processes
- Synthesize the data collected to follow the information of the control cycles
- Intuitive and easy to use




special machines_quality_inspection_TPSH

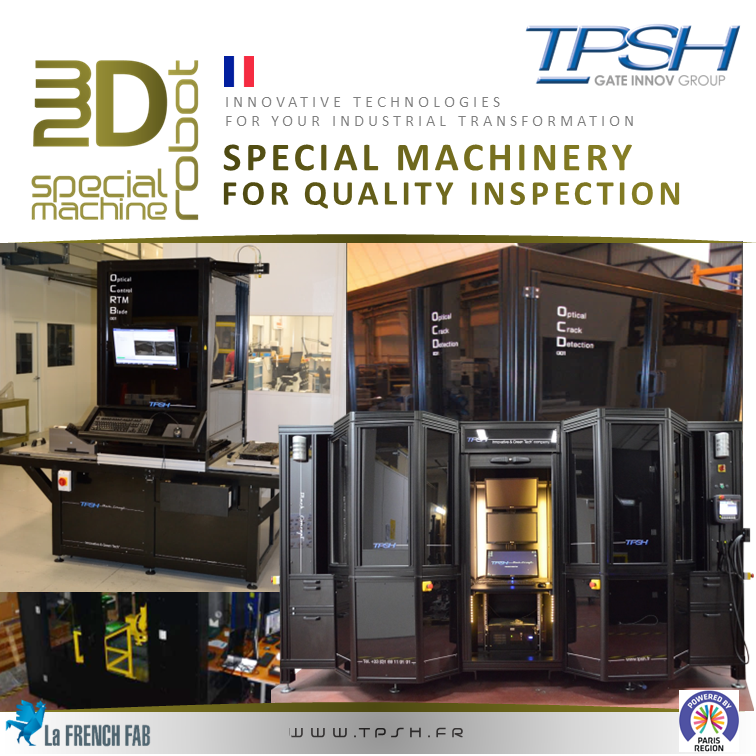

SPECIFIC MACHINES FOR QUALITY INSPECTION:

We develop our own measuring and inspection cells for your specific needs:

- 100% automatic and customizable,
- With multiple innovative functions,
- 100% automatic and autonomous,

Industrial challenges:

- Generate automatic control reports
- Improve the traceability of deliverables
- Digitize processes
- Synthesize the data collected to follow the information of the control cycles
- Intuitive and easy to use

– We are also a partner in the PAMPROD project.

PAMPROD_additive manufacturing machine_innovations_TPSH

A HYBRID MACHINE FOR MANUFACTURING PARTS UP TO 5 M – IN ADDITIVE MANUFACTURING WITH OPTIMIZED COSTS:

A flexible and agile hybrid industrial cell for manufacturing, adding functions, repairing, or rebuilding large parts.

- A machine equipped with a hybrid solution composed of 2 additive manufacturing robots, with powder and laser wire deposition,
- Patented technologies allow to follow up in real time the deposits by supervising and monitoring the fusion bath in real time with a visualization system combining cameras and a HMI,
- Thermomechanical process simulation tools ensure perfect part conformity before the manufacturing launch,

Choose parts that comply with the following industrial requirements from the very first production run:

- Quality control
- Traceability of results
- Reduce exported non-quality
- Controlled raw material
- Logistics efficiency
- Production of XXL-sized parts in FA
- Hybrid robotic and automated technologies
- Innovation in the market
- Rapid return on investment

– You can also find our service delivery:

digitization_service_TPSH

FOR MORE THAN 30 YEARS, WE ARE AT YOUR SIDE FOR THE PROVISION OF SERVICES:

Our teams will scan your parts at the factory of your choice or in our factory in Courcouronnes (91).

- Metrology, surface reconstruction,
- Mapping, design, point cloud, control report,
- 3D modeling, photogrammetry, dimensional control, NDT measuring equipment,

Industrial challenges:

- Traceability of results
- Inspection report
- Mobile team
- Portable measuring instruments
- Speed of services
- Free quotations

For more information, ask us about the monthly cost by email: info@tpsh.fr or by phone: 033 1 69 11 91 91.
